128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 300

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : LED PANEL RETROFIT

Power : 27W-24W-20W-16W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Luminous Efficacy : 165 lm/W

Installation : Surface Mounted, Wall Mounted

Warranty(Year) : 5 years warrantly

Contact Now

1ftx4ft 128w Equivalent Back-lit LED Panel Retrofit COLOR & WATTAGE ADJUSTABLE

​​​

  • Available in 1x2’ wide and 1x4’ sizes, this product has a 0-10V Dimming Driver Standard (10% – 100%) and operating temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F).

​

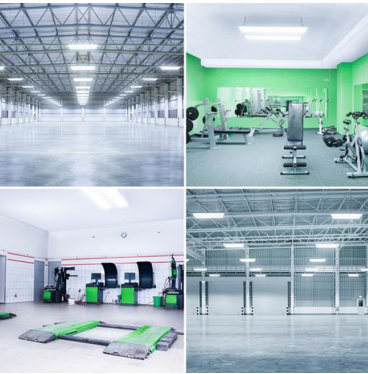

  • Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

​

  • 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off.
  • Power selective LED linear high bay One and Only Cutting Edge Class 2 Driver Techonology,
  • 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Front Access Door for Easy Maintenance
  • Cct Adjustable Linear High Bay Light Various Lens Option: Clear, Frosted, Angled lens
  • Up to 165LM/W, Range From 5000lm-53000lm

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

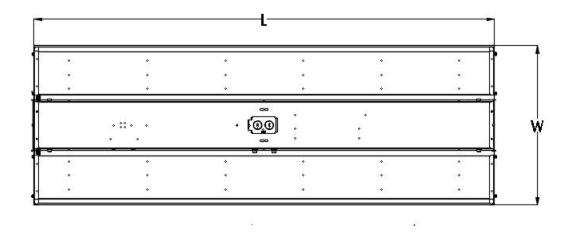

SERIES DIMENSIONS
N-HBL-14 L46.44 x W16.1 xH1.77”

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-14-150W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 150

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 24750 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-170W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 170 28050 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-190W-8XX-F-CTPA-[Blank,HV]-SN Pending 190 31350 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-210W-8XX-F-CTPA-[Blank,HV]-SN Pending 210 34650 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-190W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 190

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 31350 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-210W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 210 34650 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-230W-8XX-F-CTPA-[Blank,HV]-SN Pending 230 37950 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-250W-8XX-F-CTPA-[Blank,HV]-SN Pending 250 41250 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-260W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 260

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 42900 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-280W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 280 46200 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-300W-8XX-F-CTPA-[Blank,HV]-SN Pending 300 49500 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-320W-8XX-F-CTPA-[Blank,HV]-SN Pending 320 52800 165 120°

1000WMH,

12-lamp T5HO

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Cct Tunable LED Linear Highbay Suitable for Surface mounted, suspended mounted.

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor 128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor 128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor 128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft. Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twilight Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X4 150 170 190 210
1X4 190 210 230 250
1X4 260 280 300 320

CCT Tunable Slide Switch Position
Position/Group CCT
Low 4000K
Middle 4500K
High 5000K

128W Surface Mounted 4ft LED Linear High Bay , LED Panel Retrofit Indoor

Schools, offices, conference room, hospitality etc.
